LG LED electronic board
LG LED electronic board
The Most Effective LG LED electronic board
- Pixel Pitch: 1.5mm
- Screen Size: 130"
- Brightness: 500 cd/m²
- HDR10 Pro / Surface Sound
- Embedded System Controller
Special Features
130" Large Screen with No Bezel
The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.
Vivid Color Expression Powered by HDR10 Pro
With HDR10 Pro support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.
Immersive Surface Sound
The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.

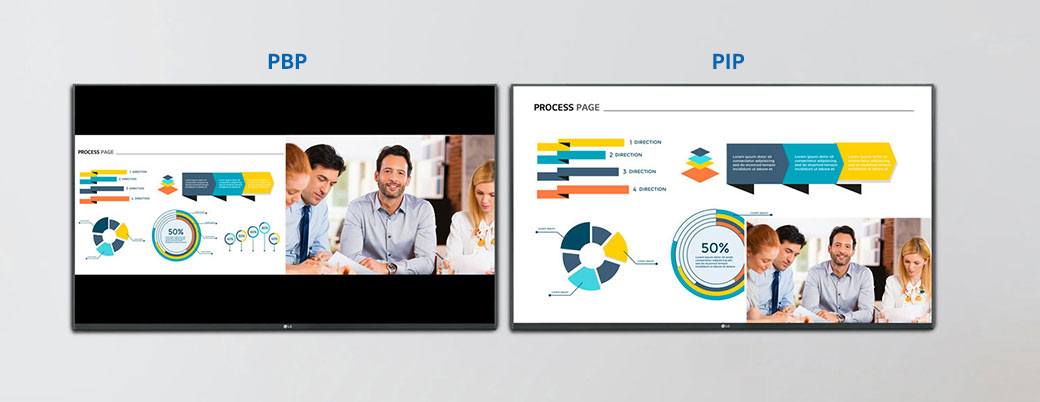

Multi Screen with PBP/PIP
PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

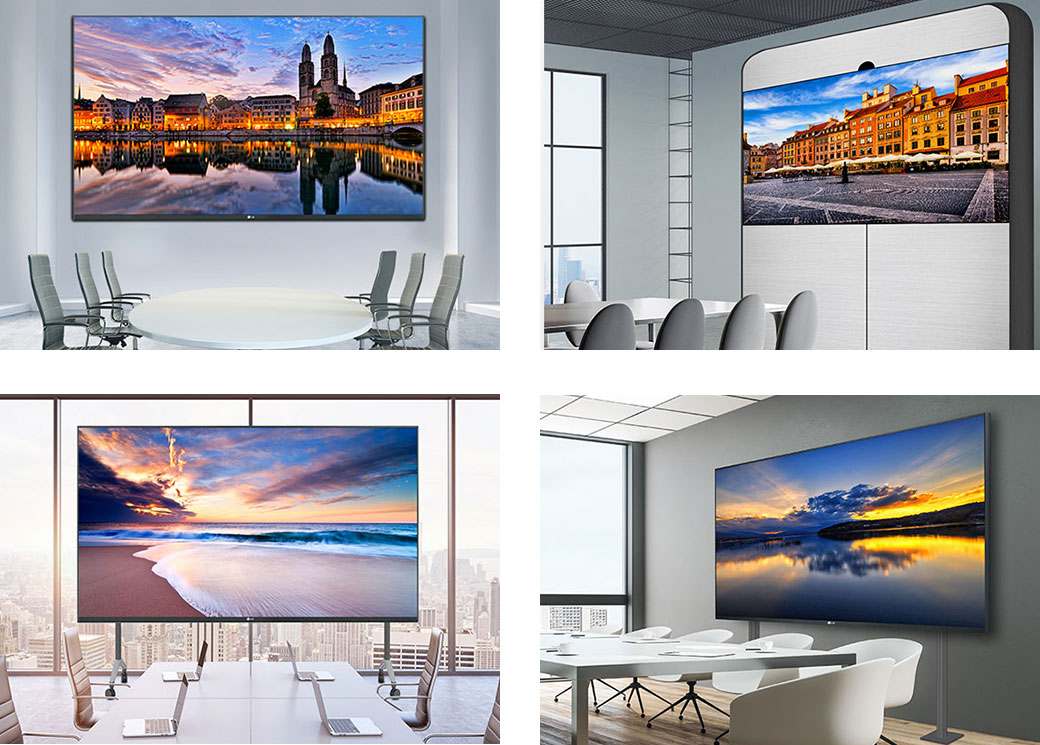

Installation Options for Various Environments
The 130" All-in-one LED Screen can be installed in various setups, depending on its environment.
* Mounting accessories (wall mount, stand, etc.) are not included with LG products.
* Network-based control.
* The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.
Specs
| Pitch Name | P1.5 |
|---|---|
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch (mm) | 1.50 |
| Screen Resolution (W x H) | 1,920 x 1,080 |
| Screen Dimension (W x H x D,mm) | 2,880 x 1,620 x 128.5 (w/o Screen Frame) |
| Screen Weight (kg) | 175 (w/o Screen Frame) |
| No. of Modules per Unit Case (W x H) | 4 x 3 |
| Unit Case Resolution (W x H) | 640 x 360 |
| Unit Case Dimensions (W x H x D, mm) | 960 x 540 x 128.5 |
| Unit Case Surface Area (m²) | 0.518 |
| Weight per Unit Case (kg/unit) | Master: 20.85 Slave: 19.24 |
| Weight per Square Meter (kg/m²) | 37.6 |
| Physical Pixel Density (pixels/m²) | 444,444 |
| Flatness of Unit Case (mm) | ±0.2 |
| Unit Case Material | Front: Die Casting Aluminum Rear: PC+ABS |
| Service Access | Front and Rear |
| Max. Brightness (cd/m²) | 500 |
|---|---|
| Color Temperature | 6,500 |
| Visual Viewing Angle (Horizontal) | 160 |
| Visual Viewing Angle (Vertical) | 140 |
| Brightness Uniformity | 95% |
| Color Uniformity | ±0.015Cx,Cy |
| Contrast Ratio | 5,000 |
| Processing Depth (bit) | 16 (HDR10, HDR10 Pro) |
| Power Consumption (W/Screen, Max.) | 2,900 |
|---|---|
| Power Consumption (W/Screen, Avg.) | 980 |
| Power Consumption (W/m², Max.) | 622 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50/60 |
| Refresh Rate (Hz) | 3,840 |
| Sound Output (Max.) | 162W |
| Lifetime (Duration of Half Brightness in Hours) | 100,000 |
|---|---|
| Operating Temperature (°C) | 0°C to 40°C |
| Operating Humidity | 10-80% RH |
| Safety | IEC 60950-1/EN 60950-1/UL 60950-1 |
|---|---|
| EMC | FCC Class A/CE/KC |
| Environment | RoHS |
| Video Inputs | HDMI In (3), DP In, USB |
|---|---|
| Control | RJ45 In, RS232C In/out |
| Special Features | Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected (Network based control) |
| Basic Accessory | Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual |
|---|
