Digital signage
Dual Sided Digital Signage
LCD display that can withstand high temperature environments
- Differentiated advertising! Starting of effective marketing
- Vibrant Dual Display
- Slim, flexible design for efficient promotion
- Allows you to express a variety of content on a double-sided display
- LCD display that can withstand high temperature conditions
Features
Android
Full-HD
Multi-format audio
and video
Supports variety
of applications
Various screen
configurations
convenient management
Plug & Play
Vibrant Dual Display

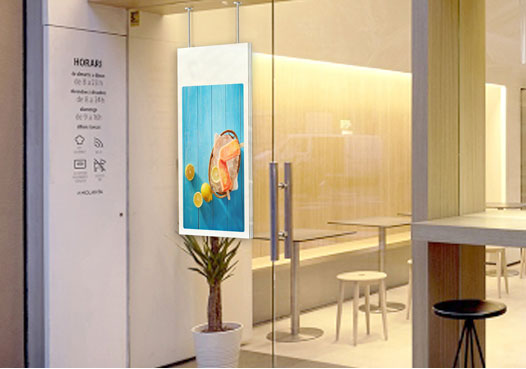

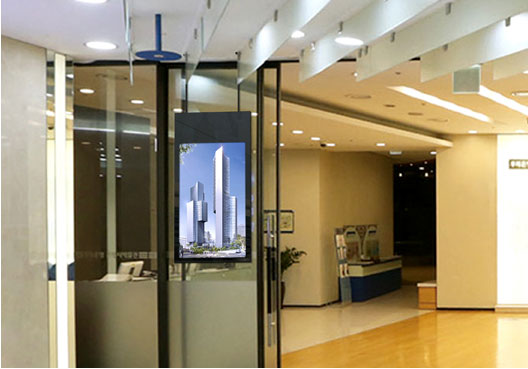

It catches the eye in and out of the store.
Exterior Brightness (3,000 cd)
Interior brightness (700 cd)

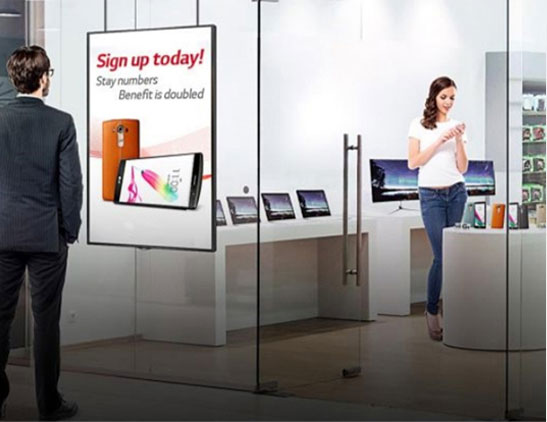

Differentiated advertising! Starting of effective marketing

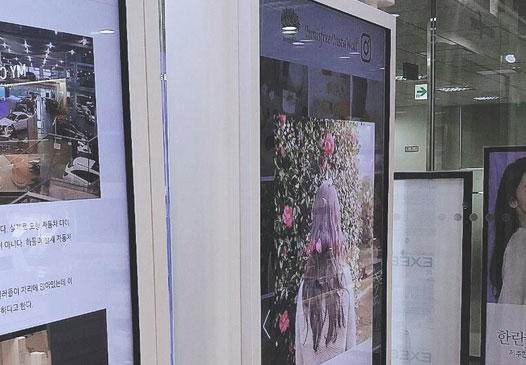

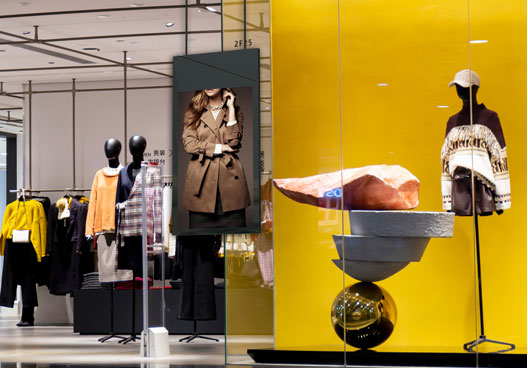

- Dual display allows you to view content both inside and outside the store

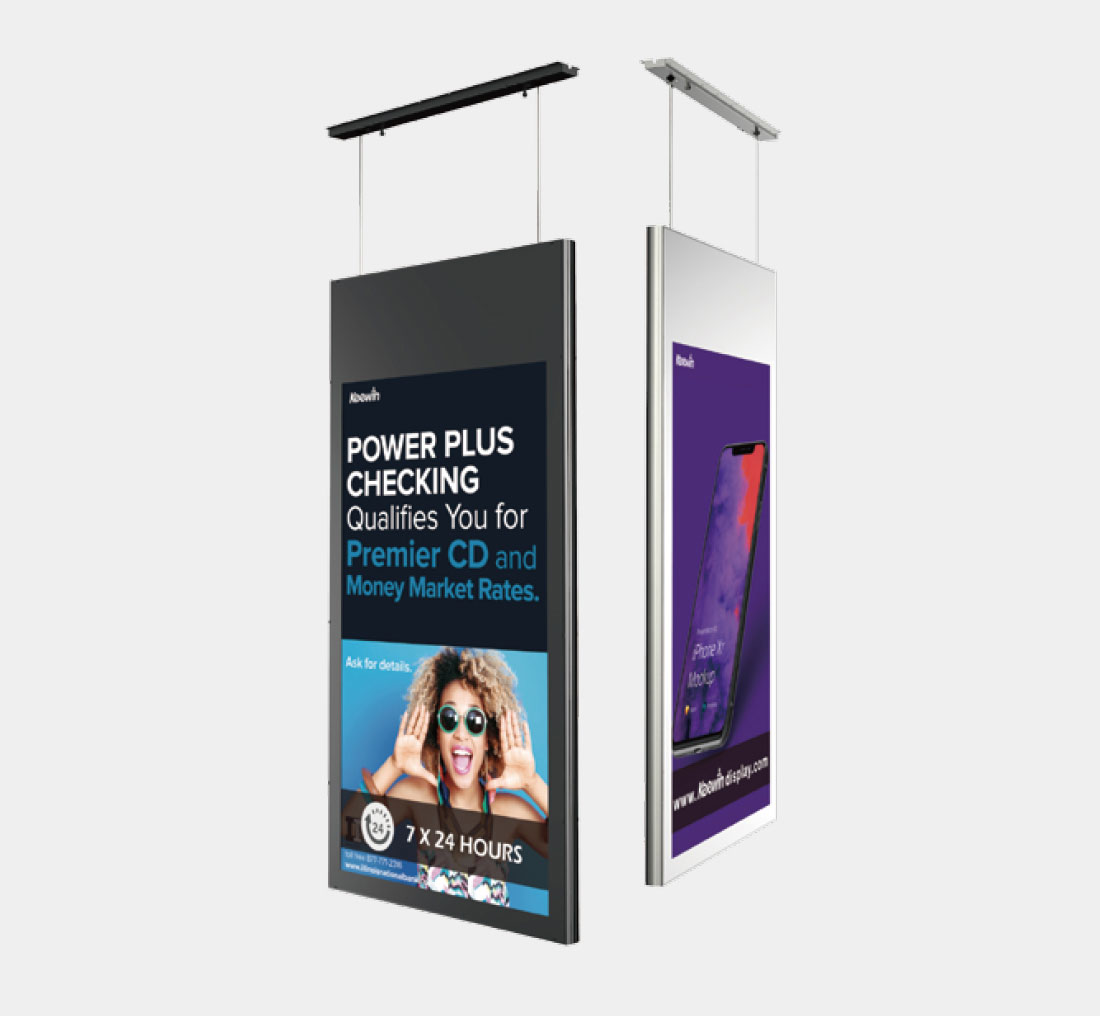

Vibrant Dual Display
- Full HD resolution support on both sides for vivid picture quality
- 178˚ wide-field angle support for clear images from various angles

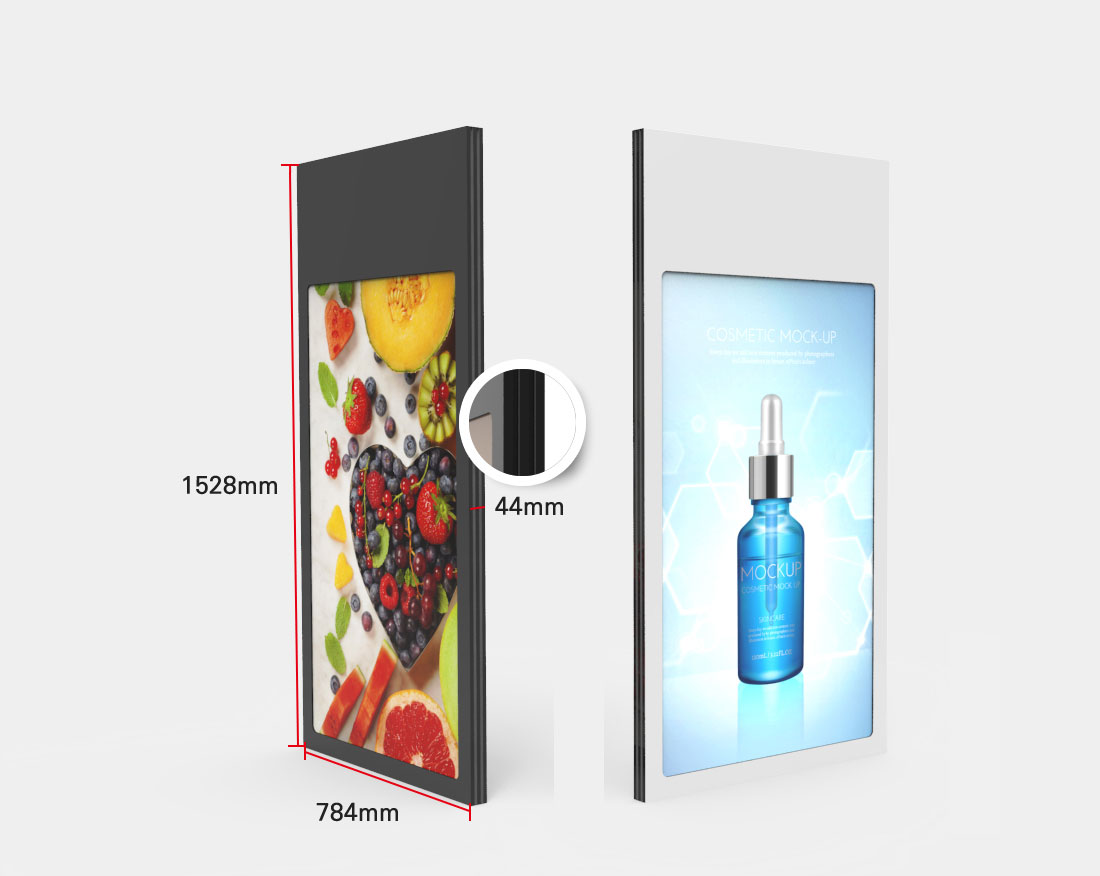

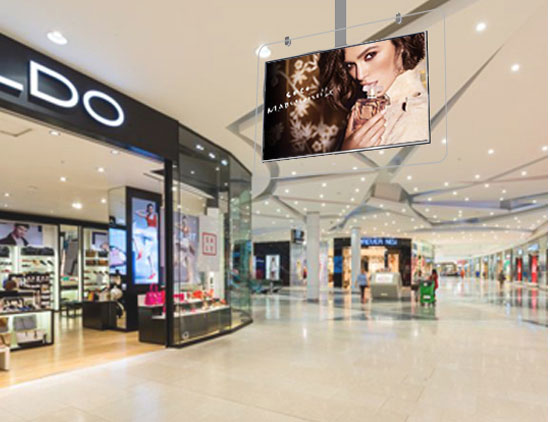

Slim, flexible design for efficient promotion
- Upgrades the atmosphere of the store with a modern and smart design

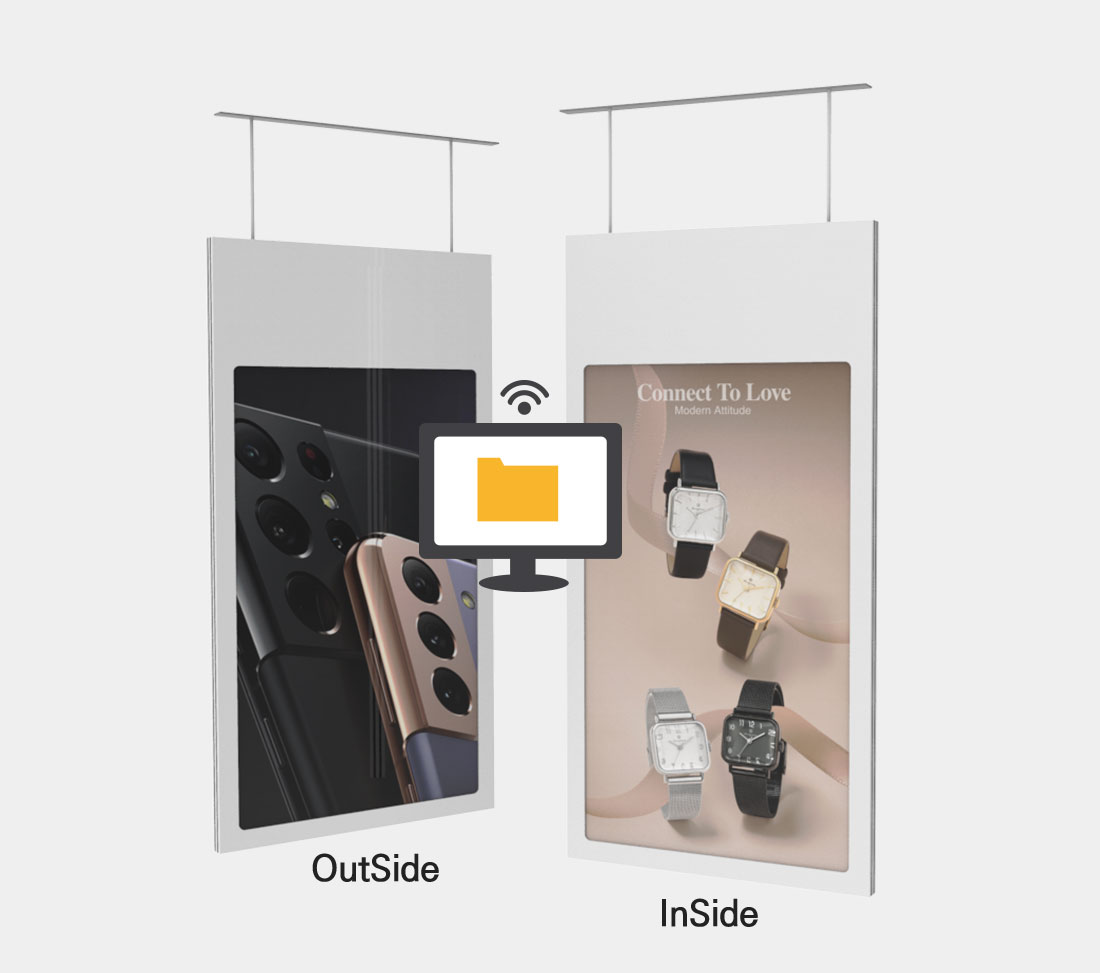

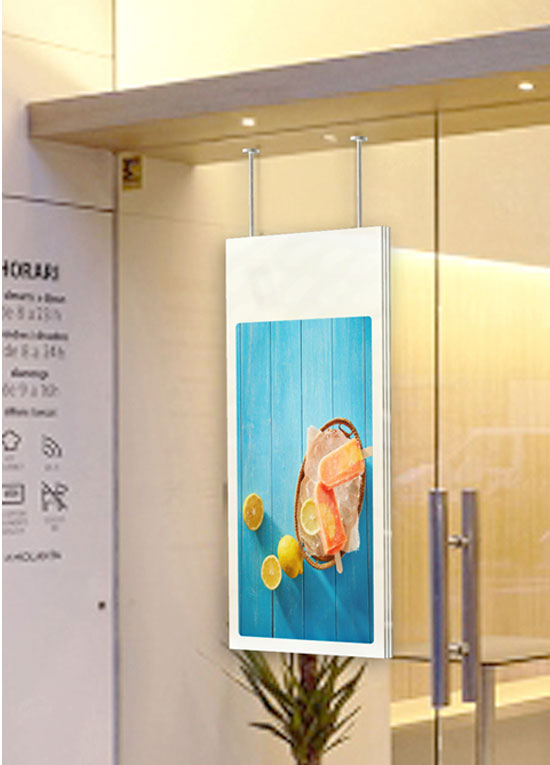

Model name : 1500-700Allows you to express a variety of content on a double-sided display

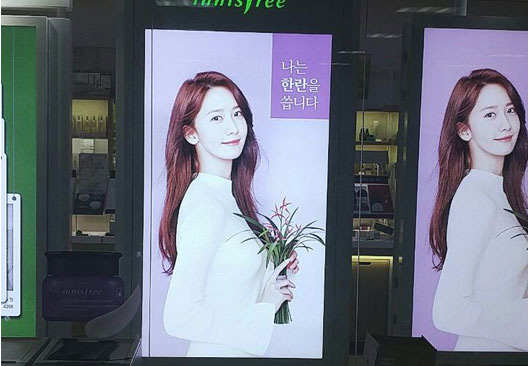

- Same or different content can be used in front and back

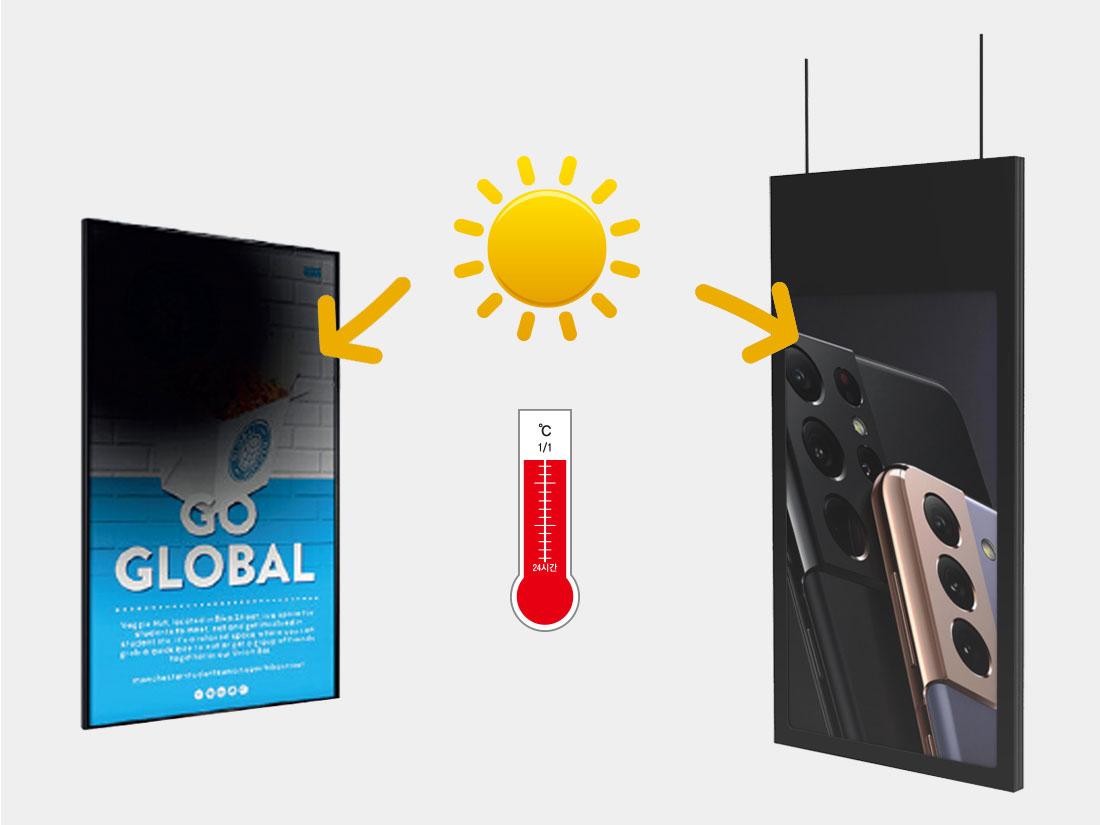

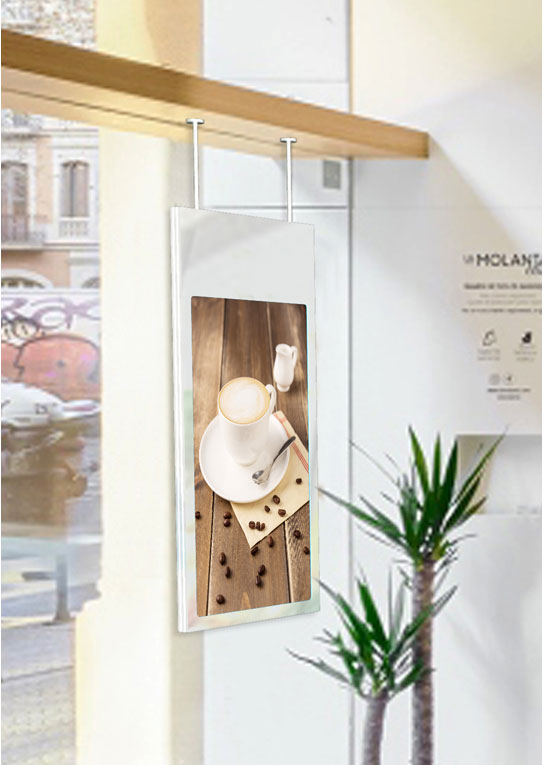

LCD display that can withstand high temperature conditions
- Excellent durability against dust and sunlight

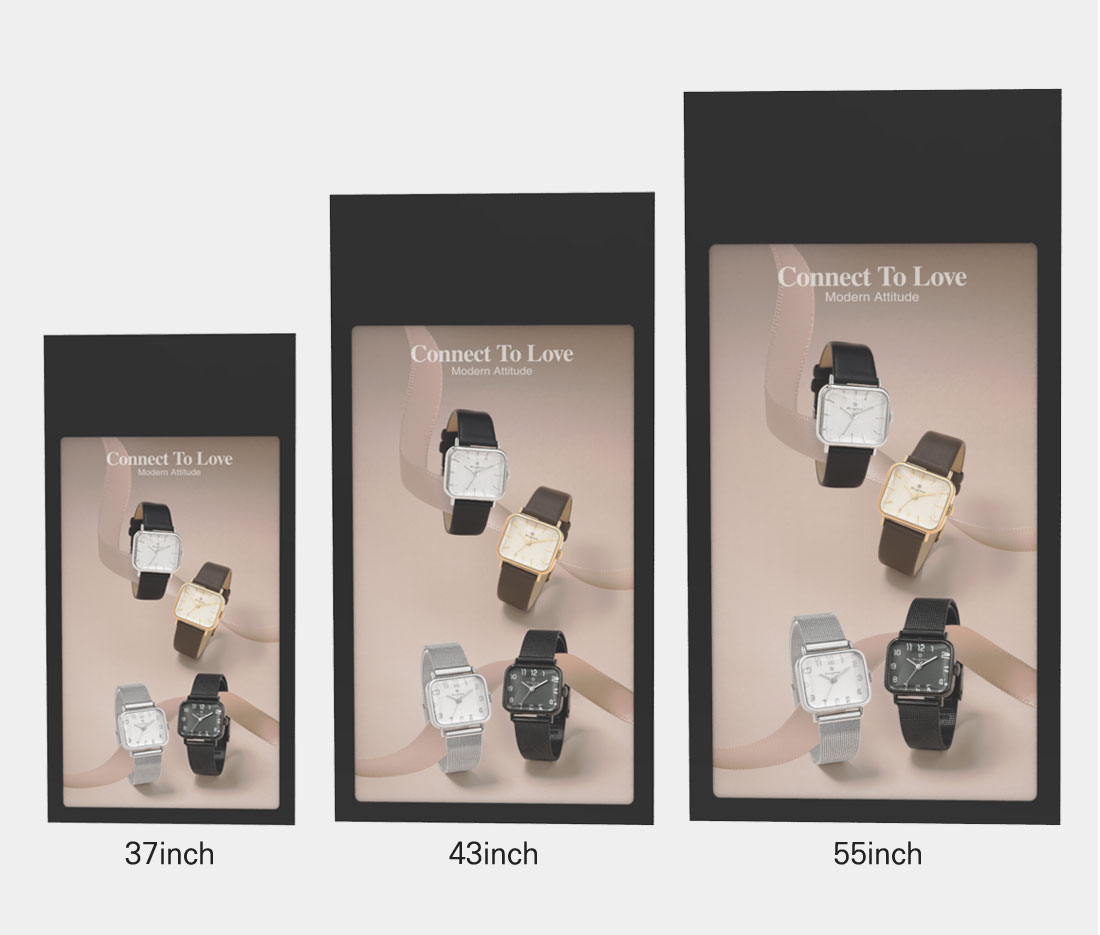

37 to 55 inches in various sizes
Real-time encryption with powerful security systems

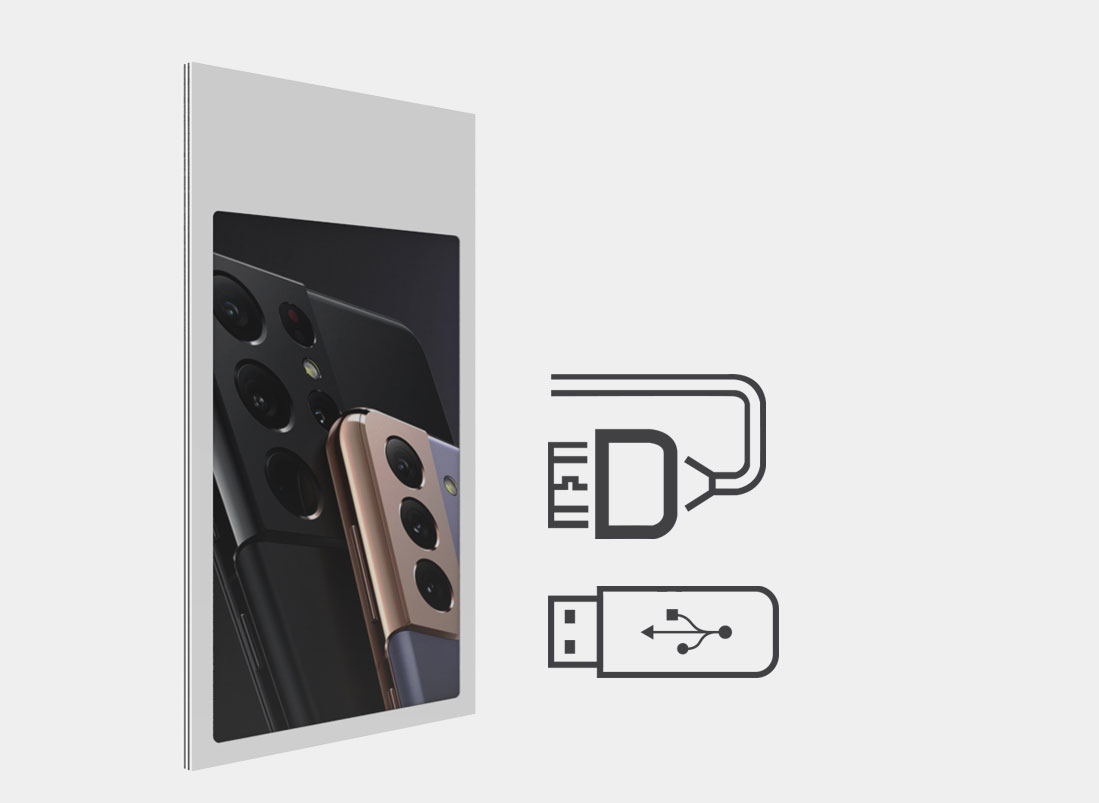

enables content transfer using USB port and HDMI
- Auto-play/Repeat-play of content without any special intervention
SPECIFICATION
| 3000-700 | 1500-700 | 700-700 | 400-400 | ||||
|---|---|---|---|---|---|---|---|
| Screen size | 55inch | 43inch | 55inch | 43inch | 55inch | 43inch | 37inch |
| Aspect Ratio | 16:9 | ||||||
| Resolution | 1920×1080(FHD) | ||||||
| Material | Steel | Aluminum | Aluminum + Stainless Steel |
||||
| Bezel Width | 50.5mm | 52mm | 50.5mm | 8mm | |||
| Display Area | 1210×680 | 941×529 | 1210×680 | 941×529 | 1210×680 | 941×529 | 803×452 |
| Product size | 1312×758×80 | 1032×601×80 | 1528×784×44 | 1235×630×44 | 1500×784×22 | 1210×630×22 | 1147×470×12 |
| Contrast Ratio | 4000:1 | 1100:1 | 1200:1 | ||||
| Brightness | 3000-700 | 1500-700 | 700-700 | 400-400 | |||
| Response time | 12ms | 14.5ms | |||||
| Viewing Angle | 178° / 178° | ||||||
| IP grade | IP 4X | ||||||
| Lifetime | 50,000H | 30,000H | |||||
| LCD Manufacturer | Keewin, LG, AUO | ||||||
| Port | Micro SD Card × 2 / HDMI × 2 USB × 6 / RS232 / LAN × 2 |
||||||
| Chipset | Rockchip | ||||||
| RAM | 4GB | ||||||
| ROM | 16GB | ||||||
| Android Version | Android 7.1 | ||||||
| Video Format | MKV, MOV, MP4, AVI, TS, MPG, ASF, FLV, OGG, RM | ||||||
| Audio Format | MP3, WMA, WAV, EAAC+, APE, FLAC, BSAC, OGG | ||||||
| Image Format | JPG, JPEG, BMP, etc | ||||||
| WIFI | Option | ||||||
| Speaker | 2W × 2 | ||||||
| Power | AC200V, 50/60Hz | ||||||
| Weight | 59kg | 43kg | 33kg | 22kg | 25kg | 18kg | 12kg |
| Working temperature |
0℃ ~ 40℃ | ||||||
