Digital signage Vedio Wall

Digital signage

Video Wall

Samsung / LG Genuine Panel

Design and manufacture of design products considering surrounding environment and interior design
  • Type 46, Type 49, Type 55 Samsung / LG Genuine Panel
  • 500 to 700 cd brightness / Full HD resolution
  • Implementing a 1.8mm boundary (Baxel)

Special Features

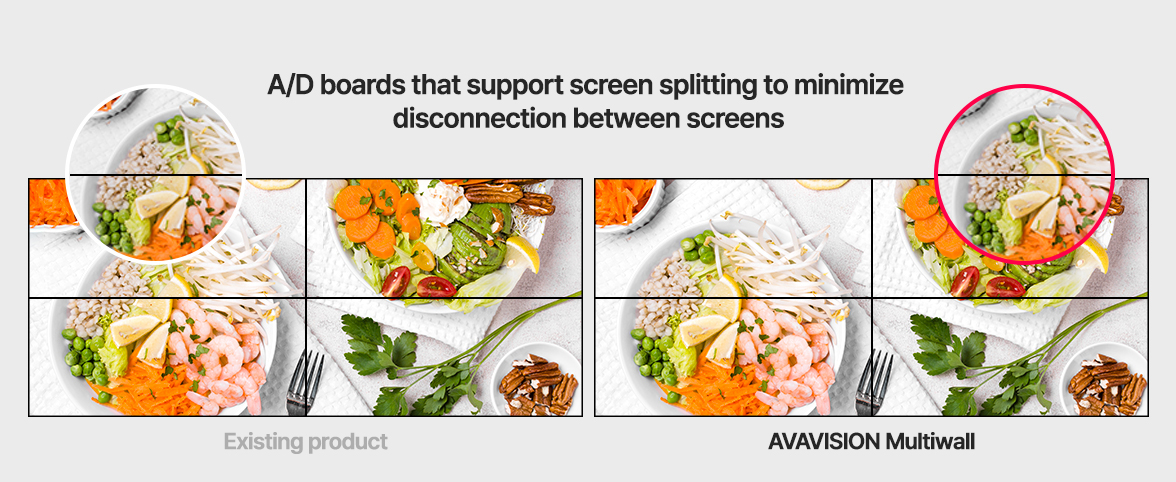

왼편- LV77A 당사 기존제품 : 디스플레이가 짤려서 보이는 현상, 오른편-VH7E LG디지털 사이니지 : 화면 짤림없이 보임
Provides a variety of options for ease of use and installation
In order to minimize errors when connecting Guide Bracket and Daisy Chain by improving smoothness during video wall installation, the ports are color-coded and printed to provide high-classified In/Out Port options for ease of use and installation.
Circuit protection coating to prevent external contamination
Circuit protection coatings provide excellent durability by securing circuit boards from dust, iron dust, moisture and other external environmental factors.

Product Characteristics

the interval between bezel and bezel

Offered in B to B 1.8mm super ultra-slim bezel, approximately 49% less than the previous 55 LV77A.

Use in a variety of locations

It is used for various purposes in the retail, Cosmetics and fashion industries as well as in the control centers of broadcasting and military units.

Light, slimmed display

Light weight and slim thickness not only provide luxurious interior effects at the workplace, but also provide convenient installation and maintenance.

Software Description

  • Provides Sync control software for content without multimedia players or PCs
  • Built-in Sync Playback functionality enables multiple content sync to be changed

Specification

AMM-L46_1.8mm_Avavision_Specific
비디오월의 AMM-L46_1.8mm_아바비젼_사양서를 안내하며 패널, 연결, 제품규격 항목으로 구성된 표입니다.
Model Name AMM-L46 (1.8mm)
Picture 비디오월 AMM-L46_1.8mm
Display Panel Screen Size 46" / 116cm
Active Display Area (㎜) 1021.08(H) x 572.67(V)
Number of Pixels 1920 x 1080 (WUXGA)
LIGHT Source D-LED
Display Colors 16.7 Million colors
Brightness (cd/㎡)/(typ) 500
Contrast Ratio 3500:1
Response Time (ms, GTG) 8
Viewing Angle (H˚/V˚) 178°/178°
Bezel Size (㎜) 1.8
Weight (㎏) 17 kg
Life Time 50,000Hr
Resolution Monitor Timming(max) 1920 x 1080
DTV Timming(max) 1080p
Connectivity
&
Control
Input VGA (15pin D-Sub) 1
HDMI 3
DVI
Composite (BNC)
Component (BNC)
PC Audio 1
Component Audio
Composite Audio
RS232C 1
Output VGA (15pin D-Sub) 1
HDMI (HDCP Not Supported)
Composite (BNC)
Component (BNC)
RS-232C 1
Speaker (Ready)
Multi-Screen Function (Loop) HDMI / DP
Power
Requirement
Input Voltage 100 - 240VAC
power saving (typ) (W) 3.5W
Consumption (typ) (W) 5.5W
Mechanical Dimension( mm) Set (W x H x L) (㎜) 1024 x 578.6 x 98.5
Bezel Size (㎜) 1.8
Weight (kg)
(Without Glass)
Set Weight (㎏) 26 kg(MAX)
OSD Language 10 Lang
Temperature 0℃ - 40℃
Humidity 20% - 80%
Wall Mounting Hole (W x H ㎜) 600 x 400
AMM-L49_1.8mm_Avavision_Specific
비디오월의 AMM-L49_1.8mm_아바비젼_사양서를 안내하며 패널, 연결, 제품규격 항목으로 구성된 표입니다.
Model Name AMM-L49 (1.8mm)
Picture   비디오월 AMM-L49_1.8mm
Display Panel Screen Size 49" / 125cm
Active Display Area (㎜) 1075.6(H) x 605.8(V)
Number of Pixels 1920 x 1080 (WUXGA)
LIGHT Source D-LED
Display Colors 16.7 Million colors
Brightness (cd/㎡)/(typ) 500
Contrast Ratio 3500:1
Response Time (ms, GTG) 8
Viewing Angle (H˚/V˚) 178°/178°
Bezel Size (㎜) 1.8
Weight (㎏) 18.5 kg
Life Time 50,000Hr
Resolution Monitor Timming(max) 1920 x 1080
DTV Timming(max) 1080p
Connectivity
&
Control
Input VGA (15pin D-Sub) 1
HDMI 3
DVI
Composite (BNC)
Component (BNC)
PC Audio 1
Component Audio
Composite Audio
RS232C 1
Output VGA (15pin D-Sub) 1
HDMI (HDCP Not Supported)
Composite (BNC)
Component (BNC)
RS-232C 1
Speaker (Ready)
Multi-Screen Function (Loop) HDMI / DP
Power
Requirement
Input Voltage 100 - 240VAC
power saving (typ) (W) 3.5W
Consumption (typ) (W) 5.5W
Mechanical Dimension( mm) Set (W x H x L) (㎜) 1024 x 578.6 x 98.5
Bezel Size (㎜) 1.8
Weight (kg)
(Without Glass)
Set Weight (㎏) 31.5 kg(MAX)
OSD Language 10 Lang
Temperature 0℃ - 40℃
Humidity 20% - 80%
Wall Mounting Hole (W x H ㎜) 600 x 400
AMM-L55_1.8mm_Avavision_Specific
비디오월의 AMM-L55_1.8mm_아바비젼_사양서를 안내하며 Model Name, AMM-L55 (1.8mm), pircture, panel, resolution, Connectivity& Control, Mechanical, OSD Language, Temperature, Humidity, Wall Mounting Hole (W x H ㎜)항목으로 구성된 표입니다.
Model Name AMM-L55 (1.8mm)
Picture   비디오월 AMM-L49_1.8mm
Display Panel Screen Size 55" / 138.7cm
Active Display Area (㎜) 1213.6(H) x 684.4(V)
Number of Pixels 1920 x 1080 (WUXGA)
LIGHT Source D-LED
Display Colors 16.7 Million colors
Brightness (cd/㎡)/(typ) 500
Contrast Ratio 3500:1
Response Time (ms, GTG) 8
Viewing Angle (H˚/V˚) 178°/178°
Bezel Size (㎜) 1.8
Weight (㎏) 20.5 kg
Life Time 50,000Hr
Resolution Monitor Timming(max) 1920 x 1080
DTV Timming(max) 1080p
Connectivity
&
Control
Input VGA (15pin D-Sub) 1
HDMI 3
DVI
Composite (BNC)
Component (BNC)
PC Audio 1
Component Audio
Composite Audio
RS232C 1
Output VGA (15pin D-Sub) 1
HDMI (HDCP Not Supported)
Composite (BNC)
Component (BNC)
RS-232C 1
Speaker (Ready)
Multi-Screen Function (Loop) HDMI / DP
Power
Requirement
Input Voltage 100 - 240VAC
power saving (typ) (W) 3.5W
Consumption (typ) (W) 5.5W
Mechanical Dimension( mm) Set (W x H x L) (㎜) 1213.5 x 684.3 x 98.3
Bezel Size (㎜) 1.8
Weight (kg)
(Without Glass)
Set Weight (㎏) 35.05 kg(MAX)
OSD Language 10 Lang
Temperature 0℃ - 40℃
Humidity 20% - 80%
Wall Mounting Hole (W x H ㎜) 600 x 400

Installation Reference

설치사례1
설치사례2
설치사례3
설치사례4
설치사례5
설치사례6
설치사례7
설치사례8
설치사례9
