LED Display

Outdoor S Series


Outdoor S Series

Gold wire advanced elements
energy-saving dual chip
3840Hz ultra-high refresh rate
high quality gray scale

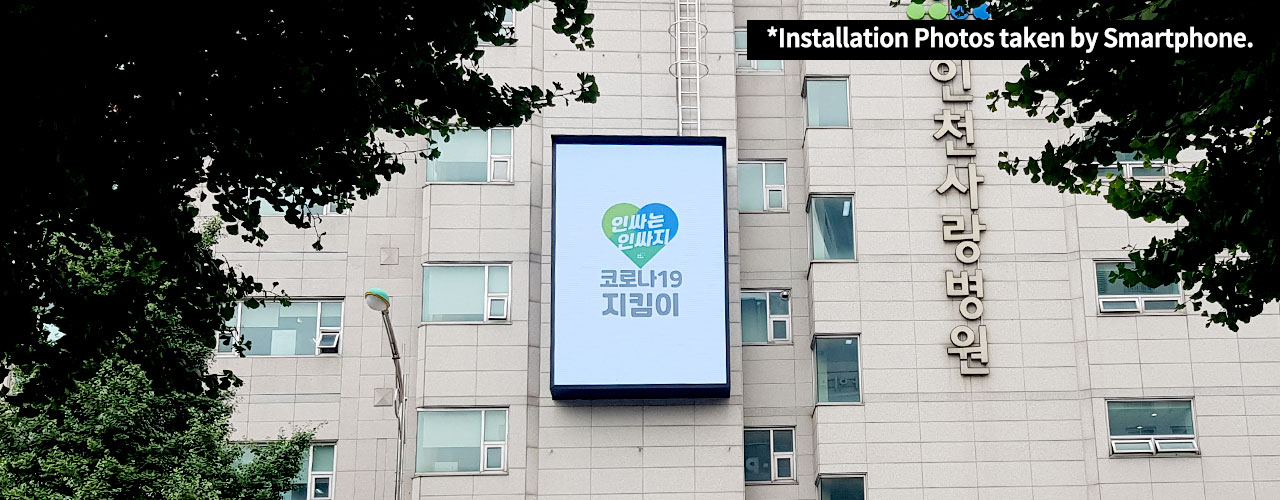

Installation Reference

Installation Reference1
Installation Reference2
Installation Reference3
Installation Reference4
Installation Reference5
Installation Reference6
Installation Reference7
Installation Reference8
Installation Reference9
Installation Reference10
Installation Reference11
Installation Reference12
Installation Reference13
Installation Reference14
Installation Reference15
Installation Reference16
Installation Reference17
Installation Reference18
Installation Reference19
Installation Reference20
Installation Reference21
Installation Reference22
  • Selected Advanced Elements

    Selected gold wire advanced elements for efficient power design, low heat generation, and superior technology to prevent failure and aging.

  • Energy-saving dual IC

    Use dynamic energy-saving dual PWM-SS ICs to support 4.5V low voltage and dynamic standby to save more energy.

  • High-efficiency copper cables

    Use high-efficiency copper cables to reduce heat generation and energy consumption for longer product life.

  • Clear screen without syringe

    3840Hz ultra-high refresh rate for comfortable viewing and clear screen without syringe.

  • High Quality Gray Scale

    Reducing the brightness does not destroy the contrast difference and creates a deeper picture.

  • Rugged quality even outside

    Rugged waterproof and dustproof design, including high-performance outdoor protective silicone and tin-plated copper color cable, ensures that the screen can be displayed in harsh environments.

  • Front and Rear Maintenance

    Easy maintenance from all directions, front and back. *Please inquire for available models



Outdoor Spec
아바비젼 led전광판의 실내형스펙을 안내하며, 모델명, ALED-SD-O-2.5, ALED-SD-O-3.0, ALED-SD-O-4.0, ALED-SD-O-5.0, ALED-SD-O-6.0, ALED-SD-O-8.0, ALED-SD-O-10.0 항목으로 구성되어있습니다.
Model name ALED-SD-O-2.5 ALED-SD-O-3.0 ALED-SD-O-4.0 ALED-SD-O-5.0 ALED-SD-O-6.0 ALED-SD-O-8.0 ALED-SD-O-10.0
Pixel Pitch(㎜) 2.5 3.0 4.0 5.0 6.0 8.0 10.0
Purpose Outdoor
Module Size(WxH) 320x160 192x192 320x160
Module Resolution 128x64 106x54 80x40 64x32 32x32 40x20 32x16
Cabinet Size
Cabinet resolution 384x384 320x320 240x240 192x192 160x160 120x120 96x96
Cabinet material Aluminium Steel
Module Quantity 3x6(1 Cabinet)
Cabinet Weight
(Including Modules)
Depending on cabinet and housing
Brightness(nit) 4500-5000
Frame Rate(㎐) 4200
Viewing Angle(H/V) 160º/160º 150º/150º 140º/140º
Power Consumption(Max/Avg)(W) 648/216 786/262 909/303 836/279 946/315 866/289 857/286
IPGrade IP65
